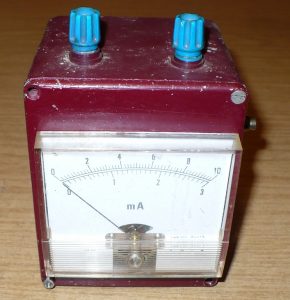

THE RF AMMETER

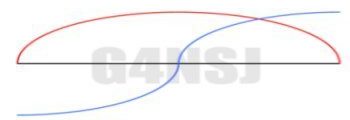

What is RF current and does it matter?

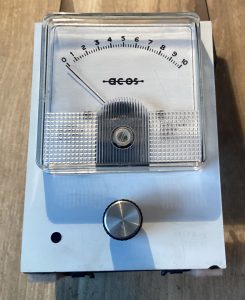

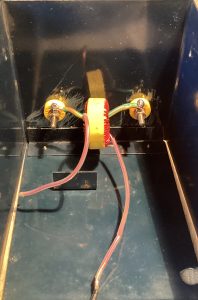

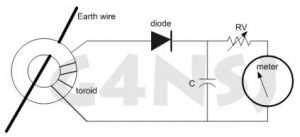

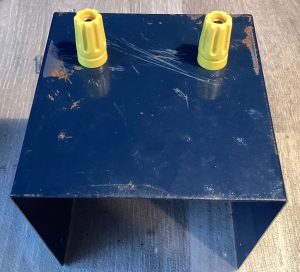

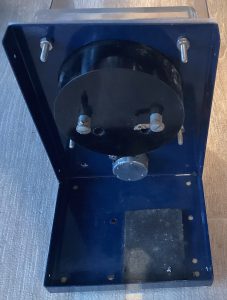

Below is the basic circuit diagram of my homebrew RF Ammeter. I would have drawn a bridge rectifier in place of the single diode but my computer circuit-drawing programme doesn't have one. Not to worry. OK, so the heavy earth wire runs through the centre of the toroid (a ferrite ring). This doesn't have to be your earth lead. It could be replaced by the wire from your aerial matching unit to your end-fed aerial. Contrary to popular belief, the current reading in the earth system should be the same as the aerial current. Don't worry about that at this stage. Around the ferrite ring are several turns of thin copper wire. The more turns, the higher the meter reading. Of course, the meter reading also depends on the transmitter power and the sensitivity of the meter.

This is what happens in the circuit. RF current flows through the heavy wire running through the centre of the toroid. The toroid acts as a current transformer, the heavy wire being the primary winding and the several turns of thin wire being the secondary winding. An AC voltage is induced in the secondary. So far, so good. This secondary voltage is rectified by the diode. The meter then reads the DC voltage which you can read as RF current flowing in the heavy wire.

As a matter on interest, this is more or less the system used by the electricity supply companies for reading currents in cables carrying high voltages. Obviously, the meter has to be calibrated. The scale on the meter I use reads 0 to 10 milliamps. This means nothing. If I ran enough power, the full-scale reading might well equate to 10 amps. Let's not worry about calibration at this point.

The capacitor is there simply to decouple any stray RF that may be floating around. Does this matter? Yes, because we don't really want RF getting into the meter as it might wreck it. So, that's basically it. The pot RV is the sensitivity control to adjust the full-scale meter reading. So, what is the point in having some indication as to the RF current flowing in your aerial or earth? And why do I have to use my RF Ammeter to adjust my aerial matching unit on 160 metres instead of the SWR meter? Why is my SWR meter bloody useless on top band? More to the point, why am I sitting here writing this when the pubs are open?

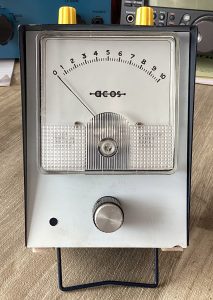

RF AMMETER
My SWR meter, like most on the market these days, was designed for 27mHz. When using the thing on 1.8mHz, there isn't enough coupling between the aerial and the pickup lead in the meter circuit. Unless I run a few kilowatts, the forward reading is virtually non-existent. And I can forget any sort of reflected power reading. So, what do I do? I tune the aerial matching until for maximum earth current. This, as I have checked, corresponds exactly to the minimum reflected power and maximum power into the aerial. I borrowed a decent SWR meter from a friend of mine to check this. He has lots of money and loads of decent equipment and a bigger aerial... Jealous? Me?
